A crew sets the foundation forms. A week later, someone notices one corner sits inside a utility easement. Now the wall may have to move, and the schedule moves with it.

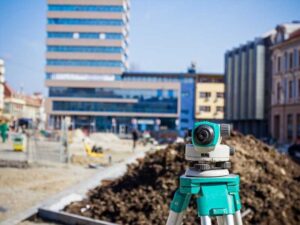

Construction staking is when a surveyor places marked points on the ground to show where a design should be built. These marks show building corners, edges, and elevations. Near a utility easement, staking has one more job. It helps keep the work out of areas where a utility has rights.

The takeaway is simple. Confirm the easement limits first, check the plans against the records, and tell your surveyor what access the utility needs. Do that before anyone digs.

Confirming Utility Easement Limits Before Construction Staking Begins

Before staking starts, the surveyor confirms where the easement sits, how wide it is, and what it allows. This comes from recorded plats, deeds, and easement documents.

An easement gives a utility or another party the right to use part of a property. The owner still holds title but faces limits on what can go in that strip. Sewer, water, gas, electric, and communication lines often run through easements.

Many older lots, infill parcels, and plats from different eras. Records do not always match each other. One easement may appear on the plat and another in a separate recorded document.

Start with a current boundary or existing conditions survey. If your survey is old, ask whether it needs an update. Easement terms vary, so read the recorded documents and ask the utility owner if anything is unclear.

Placing Building Corners and Improvements Near Easement Areas

Staking near an easement means setting building corners and other improvements at exact distances from both the property line and the easement line. A few inches can matter.

Projects often involve tight lots. Teardown rebuilds, additions, and townhome infill leave little room on the sides. When an easement takes up part of that room, the buildable area shrinks fast.

Think beyond the foundation. Some parts of a project may reach into an easement even when the walls do not:

• Roof overhangs and bay windows
• Footings and foundation walls
• Retaining walls and steps
• Window wells and patios
• Fences and gates

Stakes are often set as offsets, which means the marks sit a known distance away from the true corner. Excavators would knock out a stake set right on the corner. The contractor measures from the offset stake to find the exact spot.

Rules about what can sit in or near an easement vary by utility, easement document, and county. Confirm them before layout, not after.

Coordinating Staked Layout With Utility Access Requirements

Utility owners need room to reach their lines for repairs and upkeep. Your layout should leave that room clear.

Ask the utility what access it needs. That may include clearance around a pipe, a path for equipment, or open space near a manhole or transformer. Requirements can vary by utility, easement wording, and project.

Dense areas add pressure. Overhead lines, meters, alley access, and buried mains sit close to buildings. A driveway, wall, or landscaping plan can block access without anyone noticing.

Stakes also do not show buried lines. Call 811 before any digging so utilities can mark what they own. Do this even when the survey and plans look clear.

Questions to raise early:

• Does the utility require clear space around its lines or structures?
• Can equipment reach the easement from the street or alley?
• Are there limits on grading, trees, or hard surfaces in the easement?

Checking Plans Against Recorded Easements Before Field Layout

Before field work, the surveyor compares the design plans to the recorded easements. The goal is to make sure the layout matches what the records allow.

Plans do not always get this right. A site plan may show an easement in the wrong place or leave one out. Sometimes the plan was drawn from older data. Staking those plans exactly as drawn puts the error on the ground.

Compare the site plan, grading plan, utility plan, and survey side by side. Look at easement lines, labels, and widths. If they disagree, pause and ask the design team before staking.

What to Send Your Surveyor

The more you share, the fewer surprises you get. Send what you have:

• The latest site and grading plans
• The recorded plat and deeds
• Any title report or title commitment
• Easement documents
• Permit comments or review notes

Approved plans may need revisions if a conflict turns up. Revisions take time, so catching problems early helps your permit timeline.

Reducing Layout Conflicts Before Excavation and Construction Start

Fix conflicts on paper first. Fixing them after excavation costs far more.

After staking, walk the site with your contractor and superintendent. Check the stakes against the plans. Look at how close the layout sits to the easement and to any visible utility features.

Protect the stakes. Heavy equipment moves them easily, and a bumped stake can lead to bad measurements. If stakes are disturbed, ask for a restake before work continues.

Also tell your surveyor about design changes right away. A shifted wall or a new grading plan can change the layout near the easement.

Confirm Survey Needs Early

Survey needs can vary by property type, lender, title company, municipality, county, and project scope. If your permit, closing, or construction start depends on staking, confirm what you need before you order. Weather and scheduling can also affect timing.

Frequently Asked Questions

What is construction staking?

Construction staking is the process of marking planned building corners, lines, and elevations on the ground. A licensed surveyor sets the marks from the approved plans. Builders use them to place foundations, utilities, roads, and other improvements.

Can I build on a utility easement?

It depends on the easement terms and the utility owner. Many easements limit permanent structures, but the rules vary. Check the recorded document, ask the utility, and get legal advice if the wording is unclear.

Will construction staking show where the easement is?

It can, if you ask and if the records support it. Tell your surveyor early that you want easement lines marked near the work area. This helps the crew see the limits during layout.
