Arlington Land Surveying Challenges for High-Density Redevelopment

Posted on July 22, 2026 by Arlington Surveyor

High-density redevelopment pushes land surveying into some of its hardest conditions. A crowded site with traffic, tight setbacks and buildings rising many stories leaves little room to work and less margin for error. Surveyors handle these projects by adapting their methods to the space they have. The care they take on a cramped, vertical site keeps a complex build lined up from the ground floor to the roof.

Establishing Control Where Open Setup Space Is Limited

A dense site rarely offers the clear, open ground a surveyor would prefer. Traffic, pedestrians, construction barriers and neighboring buildings all block sight lines and crowd the setups. The crew has to find control points that work despite these obstacles.

Obstructed views force creative placement. A surveyor may set points on rooftops, in underground spaces or in the few open spots a busy site allows. Each point still has to tie cleanly into the rest of the network.

This groundwork shapes the whole project. Control established well in a tight space supports every measurement that follows. Control rushed or poorly placed causes trouble that grows as the building rises.

Measuring Existing Structures at Shared Site Edges

A redevelopment site usually presses right against its neighbors. Walls, foundations, canopies and loading areas at the shared edges all have to be measured, since the new work must fit around them. A few inches of overlap can create a real problem.

These shared edges carry legal weight. Where a new building meets an existing one, the survey documents exactly how they relate. That record protects both the project and the neighbor.

Careful measurement here prevents disputes. A structure built too close or over a line invites a costly fight. The survey settles the facts before construction commits to them.

Coordinating Subsurface and Aboveground Property Interests

A dense project involves rights that stack in three dimensions. Utilities and tunnels run below, garages sit underground, and air rights and support rights govern the space above. A survey has to account for all of them.

Flat mapping can’t capture this. The survey documents interests at different levels, showing how underground and overhead rights relate to the parcel. That three-dimensional picture guides a design that shares space with its surroundings.

Missing one of these interests is expensive. An overlooked support right or a buried easement can halt a project midstream. Mapping them fully keeps the redevelopment on solid legal ground.

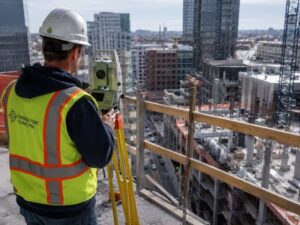

Transferring Layout Control Vertically Through the Building

As a building climbs, the survey has to carry its control upward. Layout on the tenth floor depends on references passed up from the ground, floor by floor. Each transfer has to be exact, since errors add up as the building rises.

Crews use shafts, optical tools and laser instruments to move control between levels. Independent checks confirm each transfer before the next floor builds on it. Skipping a check lets a small misalignment grow into a large one.

This vertical accuracy holds the building true. A column line that drifts a little on each floor can end up well off by the top. Careful transfer keeps every level stacked where the design intended.

Maintaining Survey Continuity Through Rapid Design Revisions

High-density projects often change fast, and the survey has to keep pace. Revised footprints, updated coordinates and new field directives flow through the job as the design shifts. Working from a superseded file invites a mistake.

Clear records manage this churn. Revision logs, dated files and marked superseded versions keep everyone on the current information. A verification survey confirms the built work matches the latest plan.

This discipline protects a moving target. When the design changes weekly, only tight version control keeps the field aligned with the office. That continuity is what holds a fast, complex project together.

Frequently Asked Questions

How is construction control transferred to upper floors?

Crews carry control upward through shafts or openings using optical or laser instruments, then check each transfer against independent references. This moves the ground-floor coordinates up floor by floor. Every level gets verified before the next one builds on it, since small errors compound as the building rises.

Can a land survey show underground and overhead property interests?

Yes. A survey can document subsurface interests like utilities and tunnels along with overhead ones like air rights and canopies. These interests exist at different levels, so the survey records them in three dimensions. That fuller picture matters most on dense sites where space is shared above and below.

Why must revised layout files be independently checked?

Because a fast-moving design produces many versions, and an old file can slip into use by mistake. An independent check confirms the crew is building from the current, correct layout. On a high-density project, that verification catches errors before they get set in concrete.
